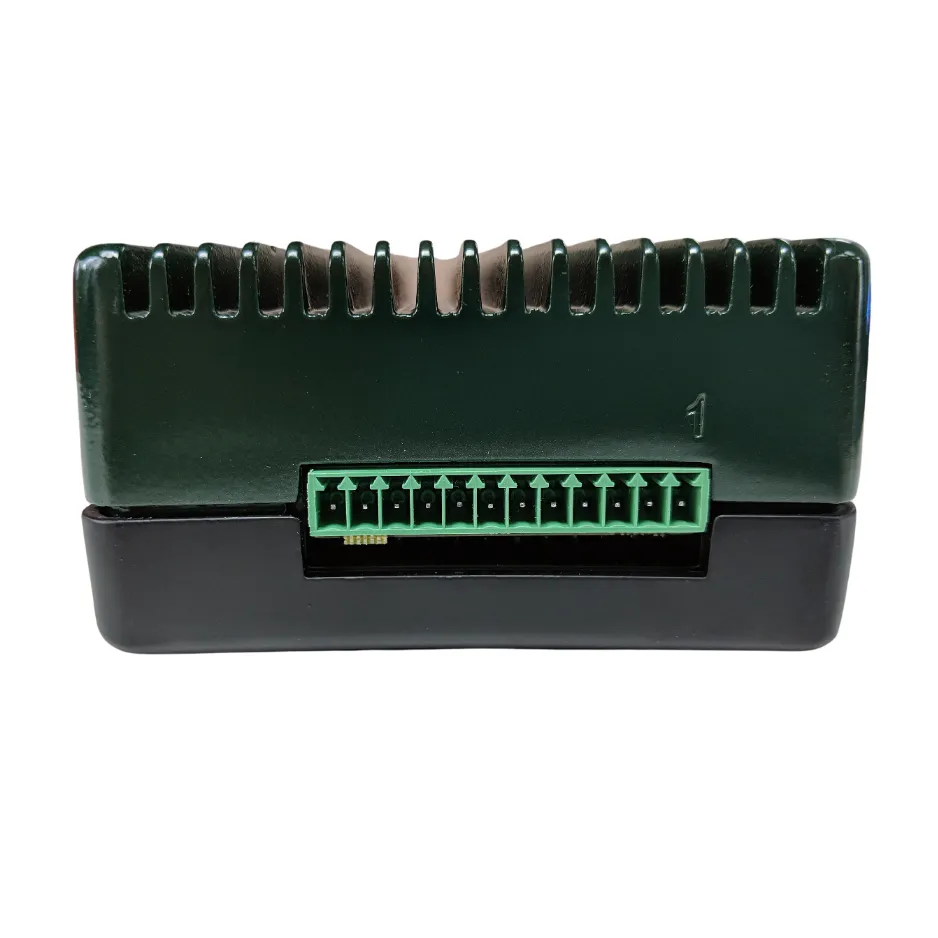

XetaWave I/O

SKU: YX1000L-IO, YX2000L-IO, YX4000L-IO, YX7000L-IO, YX9000L-IO Categories: ,

Description

XetaWave I/O combines flexible 8-port multi-function I/O functionality with any of XetaWave’s radio product lines, including the Xeta1, Xeta4, and Xeta9. Modbus RTU/TCP based I/O allows for easy integration with most SCADA software, as well as numerous PLCs and other industrial automation products. Ideal for applications such as monitoring temperature, pressure, level, and flow, as well as controlling pumps, latches, and valves, the XetaWave I/O ensures reliable and efficient process management. All I/O products include a fully featured XetaWave radio, including Ethernet and Serial connectivity, which operates simultaneously alongside I/O functionality.

Supported I/O interfaces include:

  • 4x Digital In, with 200Hz counting (1x 10kHz counting also available)
  • 4x Digital Out
  • 4x Analog In, either Voltage (-0.3-6.25 V) or Current ( 0-25 mA), both with 16-bit precision and 0.5% accuracy
  • 4x Analog Out, 0-24mA, 10-bit resolution, 0.5% accuracy

Up to 4 total Digital I/Os and 4 total Analog I/Os may be used simultaneously.

For documentation, technical questions, or any other inquires, please contact us.

Additional information

Data Interfaces

2x 10/100 Ethernet, 2x RS232/422/485 Serial, 8x Multifunction IO

RF Connector

TNC

Operating Voltage

10-32 VDC, reverse polarity protection up to 32VDC

Dimensions (LxWxH)

Enclosed: 6.625" x 3.45" x 1.835"

Part Numbers:

YX1000L-IO: Xeta1-EIOL, enclosed 100MHz radio, with 8-port multi-function I/O

YX2000L-IO: Xeta2-EIOL, enclosed 200MHz radio, with 8-port multi-function I/O

YX4000L-IO: Xeta4-EIOL, enclosed 400MHz radio, with 8-port multi-function I/O

YX7000L-IO: Xeta7-EIOL, enclosed 700MHz radio, with 8-port multi-function I/O

YX9000L-IO: Xeta9-EIOL, enclosed 900MHz radio, with 8-port multi-function I/O

XetaWave-I/O DataSheet
